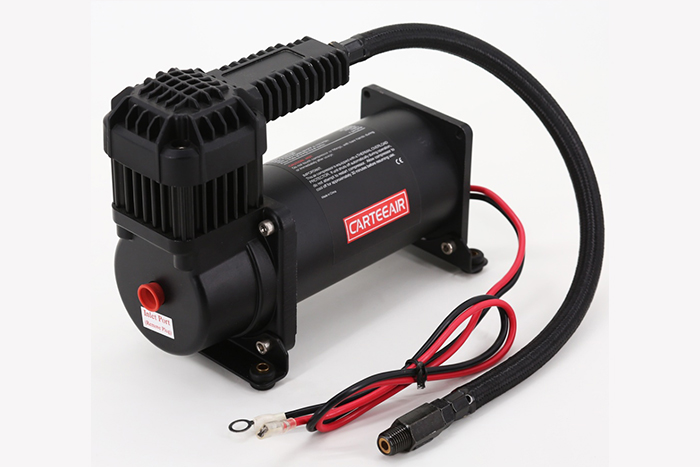

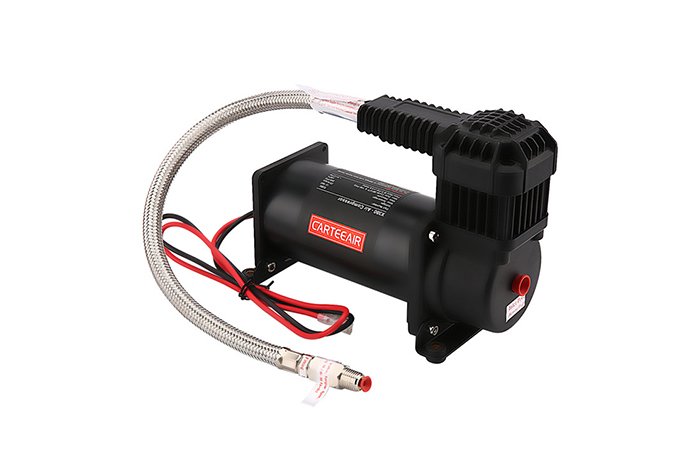

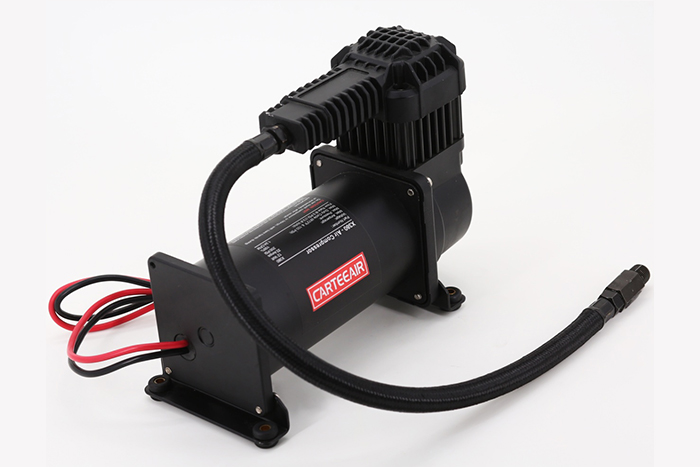

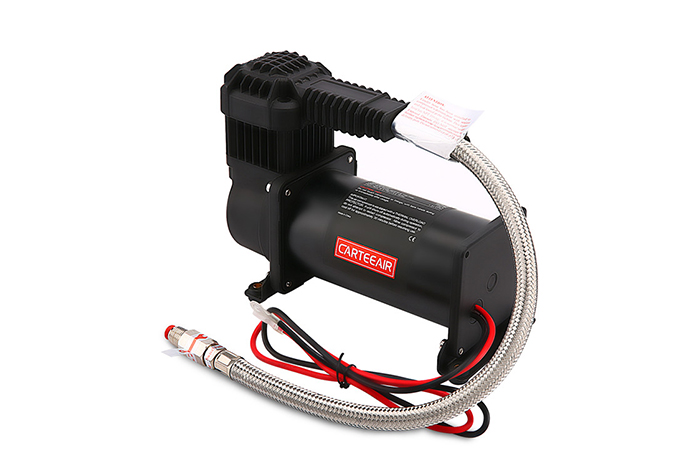

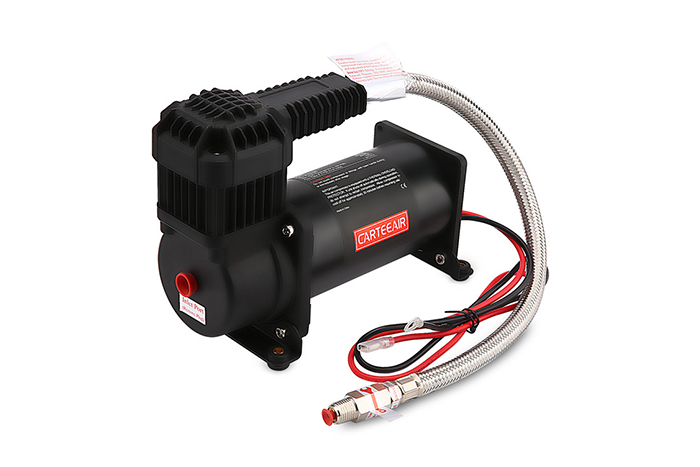

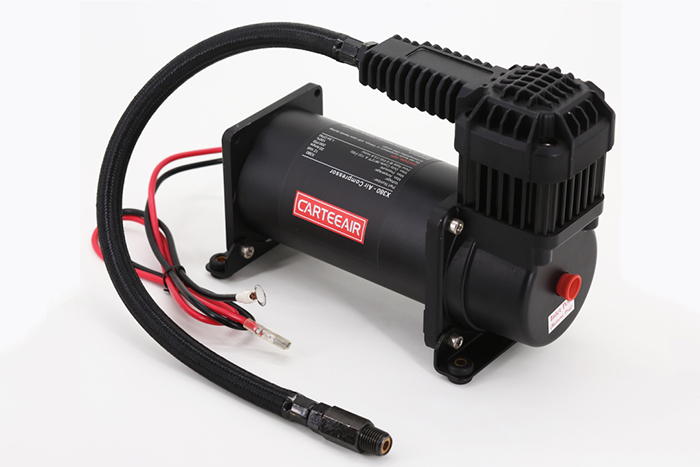

X400 Black

X400 compressor is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at 0 PSI.

It includes a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.


Model No. X400

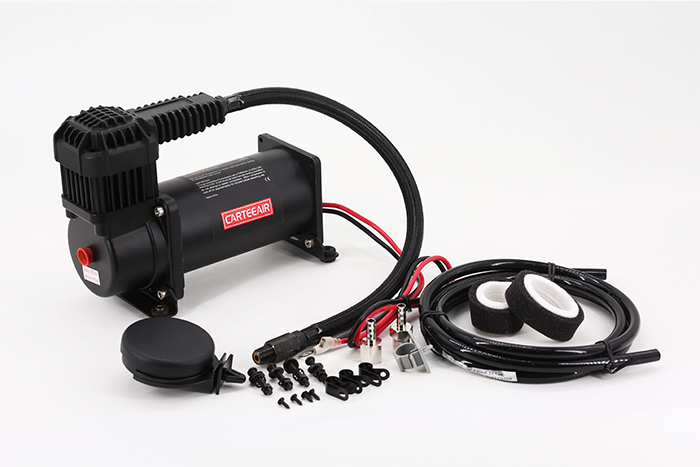

Included Parts:

- Check Valve

- Vibration Isolators

- Mounting Hardware

- Stainless Steel Braided Leader Hose

- Air Line for Remote Mount Air Filter

- Remote Mount Air Filter Assembly

- (2) Replacement Air Filter Elements


SPECIFICATIONS:

Part No. X400 Air Compressor

Motor Voltage:12 volts

Max. Current Consumption: 30 amps

Motor Type:Permanent

                    Magnetic

Horsepower:1/4

Max. Working Pressure:150 PSI

Max. Duty Cycle (@72oF & 100 PSI):33%

Minutes On/Off (@72oF & 100 PSI): 15 On/30 Off

Max. Restart Pressure:200 PSI

Max. Ambient Temperature:158F

Min. Ambient Temperature:-40F

Auto. Reset Thermal Protection:Yes

Permanent Magnetic Motor

Max. Amp Draw: 30 Amps

Dimensions: 217*100*171.5mm

Net Weight: 8.75 lbs.

Max. Intermittent Pressure: 250PSI

Max. Flow Rate: 72L/Min (2.54CFM)


Service Hotline

13886501872
13809667059

Tank Fill Rates

Begin/End PSI 2.5 Gallon Tank
0 to 105 PSI 1 Min. 27 Sec.
85 to 105 PSI 17 Seconds
0 to 145 PSI 2 Min. 20 Sec.
110 to 145 PSI 48 Seconds

Begin/End PSI 5.0 Gallon Tank
0 to 105 PSI 2 Min. 55 Sec.
85 to 105 PSI 35 Seconds
0 to 145 PSI 4 Min. 50 Sec.
110 to 145 PSI 1 Min. 40 Sec.

PERFORMANCE DATA

PSI CFM A BAR LPM A
0 2.54 16 0 72.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts
Features:

  • IP 67 Rated
  • Gearless, direct-driven electric motors
  • Oil-less design requires no maintenance (besides filter inspection/replacement)
  • High performance and highly reinforced PTFE piston ring
  • Anodized piston cylinder for increased wear protection
  • Precision, high speed, durable bearings for increased piston & motor life
  • Sealed motor housing for moisture resistance
  • Environmental seals where electrical connections enter motor housing
  • Stainless steel braided leader hose (PTFE lined where applicable)
Thermal Overload Protection (T.O.P. equipped compressors only) to protect compressor from overheating during normal operational duty cycle
