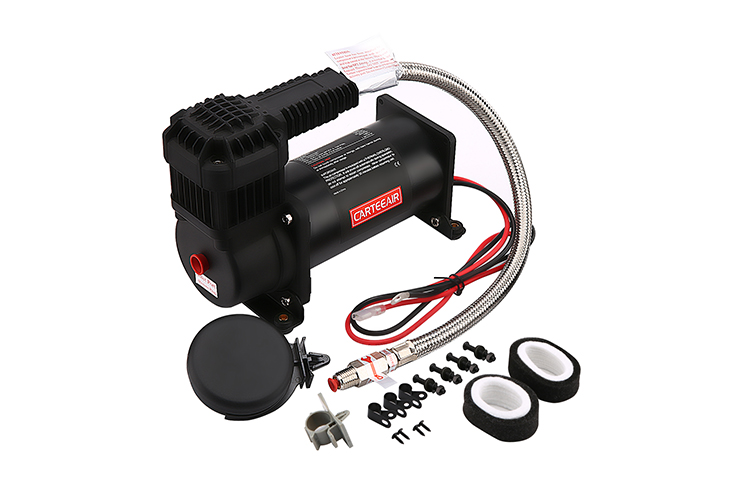

Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
Max. Amp Draw: 22 Amps
Dimensions: 217*100*171.5mm
- Net Weight: 8.75 lbs.
Max. Intermittent Pressure: 300PSI
Max. Flow Rate: 38L/Min (1.34CFM)
13886501872
13809667059
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.34 | 12 | 0 | 38 | 12 |
| 10 | 1.27 | 13 | 1 | 35.5 | 14 |
| 20 | 1.22 | 14 | 2 | 33 | 15 |
| 30 | 1.17 | 15 | 3 | 30.5 | 16 |
| 40 | 1.09 | 16 | 4 | 29 | 17 |
| 50 | 1.06 | 17 | 5 | 27 | 17 |
| 60 | 1.02 | 17 | 6 | 25.5 | 18 |
| 70 | 0.97 | 17 | 7 | 24 | 18 |
| 80 | 0.92 | 18 | 8 | 22.5 | 18 |
| 90 | 0.88 | 18 | 9 | 21 | 18 |
| 100 | 0.85 | 18 | 10 | 19.5 | 18 |
| 110 | 0.81 | 18 | 11 | 18 | 18 |
| 120 | 0.78 | 18 | 12 | 16.5 | 17 |
| 130 | 0.74 | 18 | 13 | 15 | 17 |
| 140 | 0.71 | 18 | 14 | 13.5 | 16 |
| 150 | 0.67 | 18 | |||
| 160 | 0.64 | 18 | |||
| 170 | 0.6 | 17 | |||
| 180 | 0.57 | 17 | |||
| 190 | 0.53 | 17 | |||
| 200 | 0.49 | 16 | * Supply Voltage: 13.8 Volts | ||
| 2.5 Gallon Tank | Fill Rate |
| 0 to 145 PSI | 3 min. 30 sec. |
| 110 to 145 PSI | 1 min. 10 sec. |
| 0 to 200 PSI | 6 min. 05 sec. |
| 165 to 200 PSI | 1 min. 40 sec. |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 145 PSII | 7 min. 20 sec. |
| 110 to 145 PSI | 2 min. 25 sec. |
| 0 to 200 PSI | 13 min. 25 sec. |
| 165 to 200 PSI | 3 min. 39 sec. |
