惠州市卡迪機電有限公司
Huizhou Cartee Electric & Machinery Co., Ltd.
Hotline

13886501872  13809667059

Hotline

13886501872
13809667059

Products

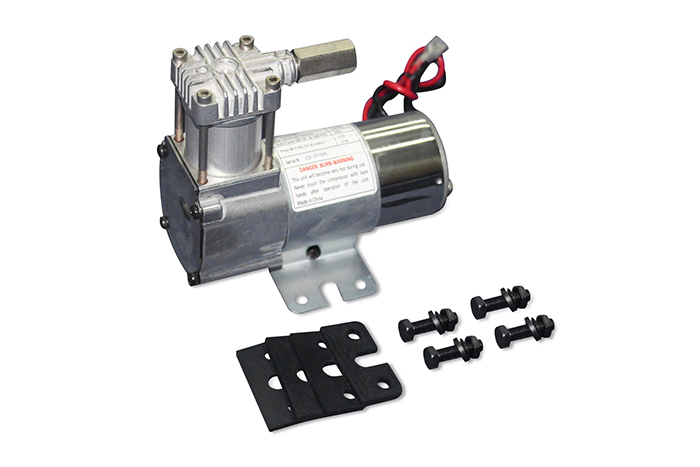

X098
  • X098
X098
 1.1 heavy duty, direct drive powerful motor
1.2. Low noise
1.3 oil free design
1.4. High strength stainless steel airtight valve
1.5. High performance wear-resistant piston ring
1.6 anode aluminum alloy cylinder
1.7 low noise durable air pump and motor provide quiet work and long service life
1.8 moisture and dust prevention
1.9 equipped with one-way valve
2.0 equipped with shock-absorbing foot pads and mounting brackets
Service Hotline

13886501872
13809667059

Included parts: ? 1) mounting bracket ? 2) check valve ? 3) shock absorbing foot pad ? 4) mounting screw set 5) installation instructions
Specification data:
Damp proof and dust-proof
Permanent magnet motor
Duty cycle: 10% @ 100 psi
Maximum working pressure: 130 PSI
Maximum current: 13 Amps
Maximum intermittent pressure: 220psi
Net weight: 1.2 kg
Size: 139.5*80*120mm


X098Performance data
PSI CFM LPM A
0 1.27 36.0 9
10 1.06 30.0 10
20 0.92 26.0 11
30 0.85 24.0 11
40 0.81 23.0 12
50 0.78 22.0 12
60 0.74 21.0 12
70 0.71 20.0 13
80 0.67 19.0 13
90 0.64 18.0 13
100 0.60 17.0 12
110 0.53 15.0 11
120 0.46 13.0 11
130 0.42 12 11
140 0.35 10 10
150 0.32 9 10
