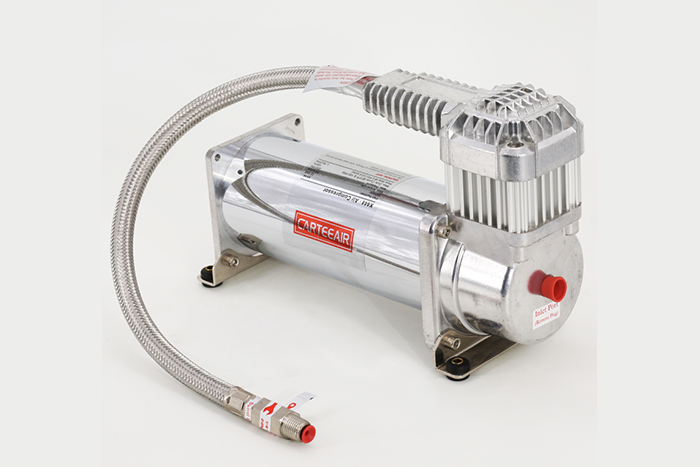

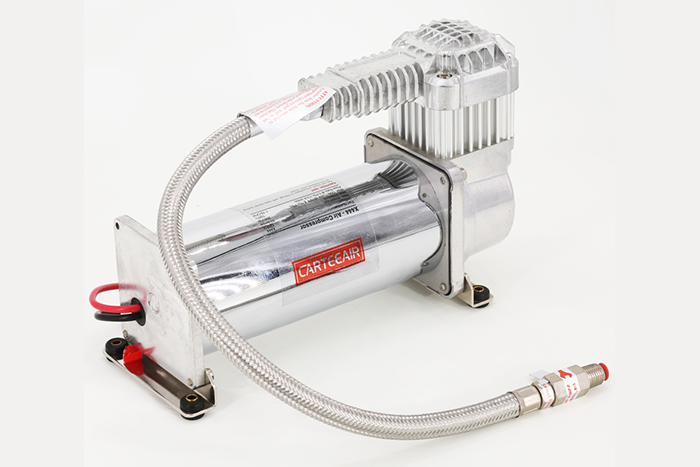

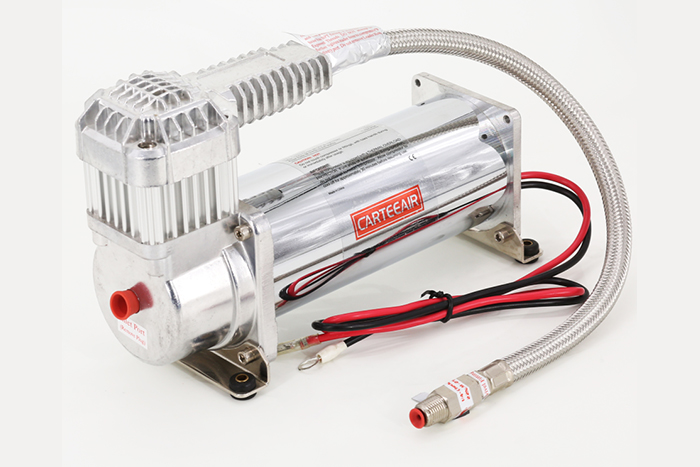

X444 air compressor is a 100% duty cycle compressor that works quickly and efficiently putting out 1.76 CFM flow at 0 PSI.
It includes a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Features:
duty cycle: 100% @ 100 psi
flow rate: 1.76 cfm @ 0 psi
max working pressure: 200 psi
intermittent pressure: 300 psi
volt: 12v
amp: 23a
ingress protection rating: ip67
cylinder: Φ40mm
13886501872
13809667059

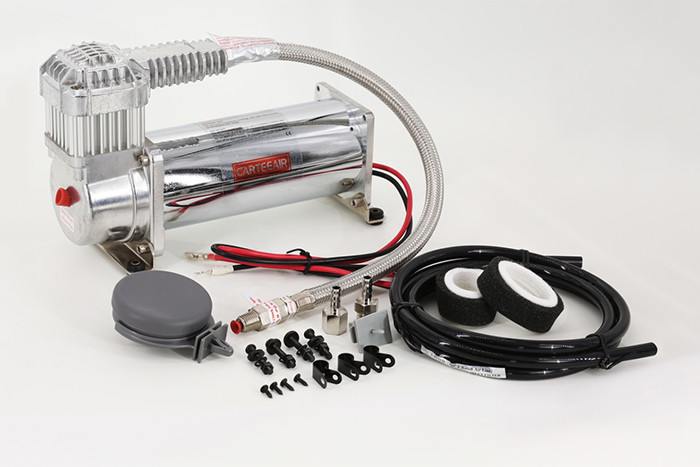

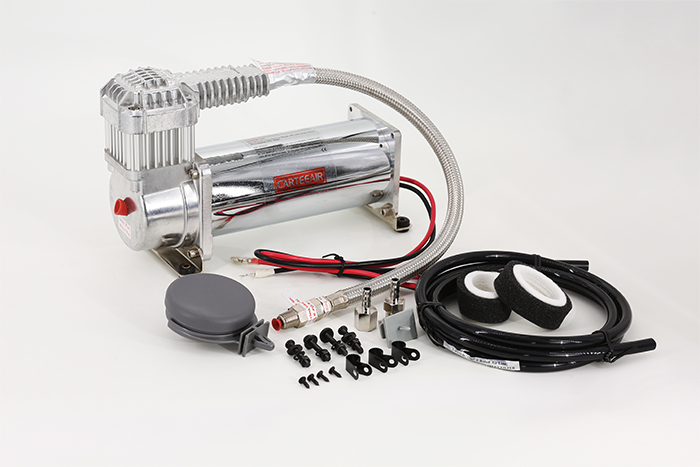

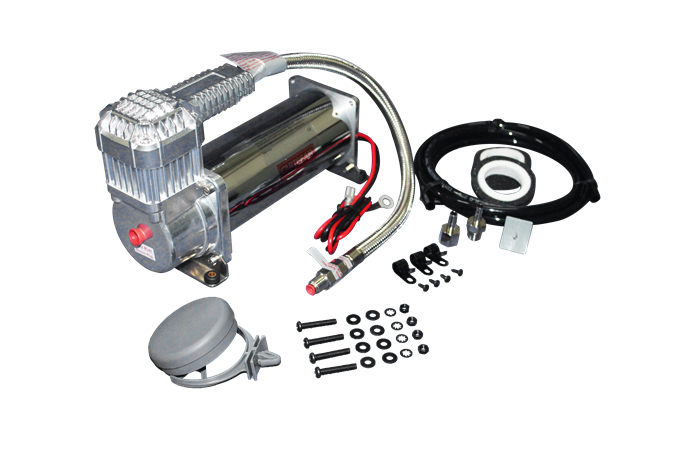

Accessories:
mounting hardware (nuts, bolts, locking washers)
vibration isolators
remote mount air filter assembly
two replacement air filter elements
air line for remote mount air filter installation
stainless steel braided leader hose
check valve
Parameter:
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.76 | 10 | 0 | 50 | 10 |
| 10 | 1.66 | 12 | 1 | 46 | 13 |
| 20 | 1.59 | 14 | 2 | 43 | 14 |
| 30 | 1.52 | 15 | 3 | 40.5 | 17 |
| 40 | 1.45 | 16 | 4 | 38.5 | 18 |
| 50 | 1.41 | 17 | 5 | 35.5 | 19 |
| 60 | 1.34 | 18 | 6 | 33 | 19 |
| 70 | 1.27 | 18 | 7 | 31.5 | 19 |
| 80 | 1.2 | 19 | 8 | 29.5 | 20 |
| 90 | 1.16 | 19 | 9 | 27 | 20 |
| 100 | 1.13 | 19 | 10 | 25 | 19 |
| 110 | 1.06 | 20 | 11 | 23 | 19 |
| 120 | 1.02 | 20 | 12 | 20.5 | 19 |
| 130 | 0.95 | 20 | 13 | 18 | 18 |
| 140 | 0.92 | 19 | 14 | 15.5 | 18 |
| 150 | 0.85 | 19 | |||
| 160 | 0.81 | 19 | |||
| 170 | 0.74 | 19 | |||
| 180 | 0.7 | 19 | |||
| 190 | 0.63 | 18 | |||
| 200 | 0.56 | 18 | |||
*Voltage: 13.8 V
CARTEEAIR offers the most comprehensive line of 12-volt and 24-volt air compressors for both the on-and off road markets available anywhere. Our quality engineered compressors and components are also used in the OEM segment, and have become the industry standard for automotive aftermarket applications worldwide.
Note:
? Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.
? Max. operating temperature: +158°F,
? Min. operating temperature: -40°F (unless otherwise noted).
Applications:
1)Air Suspension System
2)Air Horn
3)Air Locker
4)Air Brake Assist
5)Air Seat Suspension
6)Agricultural Machinery
7)Industrial
8)Medical
