惠州市卡迪機(jī)電有限公司
Huizhou Cartee Electric & Machinery Co., Ltd.
Hotline

13886501872  13809667059

Hotline

13886501872
13809667059

Products
X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
  • X444 Black
X444 Black

characteristic:

1.1 the motor is equipped with an automatic recovery temperature protector

1.2 heavy duty, direct drive powerful motor

1.3. Low noise

1.4 oil free design

1.5. High strength stainless steel airtight valve

1.6. High performance wear-resistant piston ring

1.7 anode aluminum alloy cylinder

1.8 low noise durable air pump and motor provide quiet work and long service life

1.9 moisture and dust prevention

2.0 heat resistant steel-clad yarn rubber tube, equipped with one-way valve and rotary joint

2.1 double layer filter, which can be installed remotely

2.2 equipped with shock-absorbing foot pads

Service Hotline

13886501872
13809667059

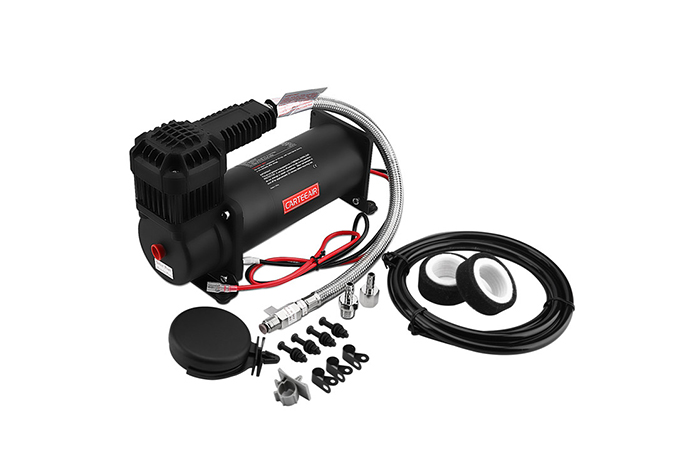

Included accessories: installation screw set, shock absorption foot pad, remote installation filter set, steel wrapped yarn rubber tube, check valve, filter foam set (replacement)
Specifications:
12-Volt
Permanent magnet motor
Working cycle: 100% @ 100 PSI
Maximum working pressure: 200 PSI
Maximum current: 23 Amps
Maximum instantaneous pressure： 250PSI



性能數(shù)據(jù)
PSI CFM A BAR LRM A
0 1.76 10 0 50 10
10 1.66 12 1 46 13
20 1.59 14 2 43 14
30 1.52 15 3 40.5 17
40 1.45 16 4 38.5 18
50 1.41 17 5 35.5 19
60 1.34 18 6 33 19
70 1.27 18 7 31.5 19
80 1.2 19 8 29.5 20
90 1.16 19 9 27 20
100 1.13 19 10 25 19
110 1.06 20 11 23 19
120 1.02 20 12 20.5 19
130 0.95 20 13 18 18
140 0.92 19 14 15.5 18
150 0.85 19
160 0.81 19
170 0.74 19
180 0.7 19
190 0.63 18
200 0.56 18 電源電壓: 13.8 Volts



充氣速度
2.5 Gallon Tank Fill Rate
0 To 145 PSI 2 Min. 29 Sec.
110 To 145 PSI 57 Sec.
0 to 200 PSI 5 Min. 02 Sec.
165 to 200 PSI 1 Min. 23 Sec.
5.0 Gallon Tank Fill Rate
0 To 145 PSI 6 Min. 02 Sec.
110 To 145 PSI 1 Min. 55 Sec.
0 to 200 PSI 10 Min. 08 Sec.
165 to 200 PSI 2 Min. 20 Sec.
